2 Way Extrernal Operated Bi-Directional Solenoid Valve

Get a Price/Quote

Product Details:

Application Industrial
Type Solenoid Valve
Size 12 mm to 50 mm
Product Type 2 Way Extrernal Operated Bi-Directional Solenoid Valve
Color Red & Black
Temperature 80 Celsius (oC)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

2 Way Extrernal Operated Bi-Directional Solenoid Valve Price And Quantity

Minimum Order Quantity 10 , , Piece

2 Way Extrernal Operated Bi-Directional Solenoid Valve Product Specifications

Product Type 2 Way Extrernal Operated Bi-Directional Solenoid Valve
Type Solenoid Valve
Temperature 80 Celsius (oC)
Application Industrial
Color Red & Black
Size 12 mm to 50 mm

2 Way Extrernal Operated Bi-Directional Solenoid Valve Trade Information

Supply Ability 1000 , , Piece Per Month
Delivery Time 7 Days

Product Description

Model: 23104Pressure Range(Bar): 0-10Orifice Size (mm): 12 | 20 | 25 | 40 | 50Port Connection: 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2"| 2"MOC: Aluminium Cast | CF8M (SS316 Cast only in 1/2" | 3/4" | 1")Solenoid: Weather Proof | Explosion ProofMedia:Air | Free Flowing Liquid | Fuel | Inert Gas | LPG | Oil | Vaccum | WaterApplication: Bi-Directional Flow | Vaccum BrakingCertificate: ATEX | CCOE/PESO | CUTR-EAC | IEC Ex | INMETRO | UKRAINE | CE | UL

Catalogue: EN

Installation Manual: EN

Other Products in 'Air Solenoid Valve' category

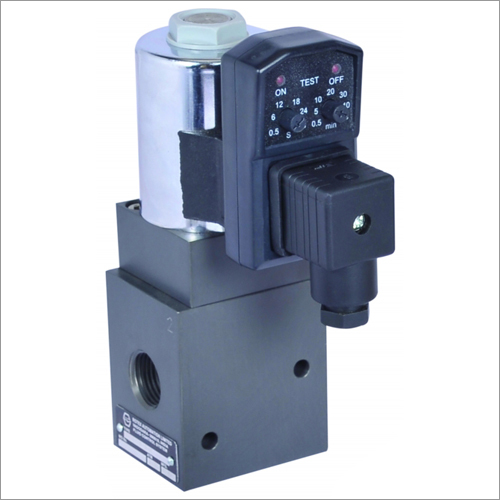

2 Port Air Compressor Solenoid Valve Minimum Order Quantity : 10 Type : 2 Port Solenoid Valve Application : Air Compressor Systems Product Type : "2Port Air Compressor Valve Color : Black Pressure : Other, Standard industrial pressure range PSI Media : Other, Air Sealing : Rubber or Polymer Material : Aluminum and Steel Connection Type : Screw Connection Temperature : Up to industrial standards Disc : Metal Features : Compact design High durability Valve Size : Standard size Structure : Other, Solenoid Valve design Port Size : 2 Ports Valve Type : Direct Operated Pin : 2pin configuration Control System : Electrical Power : Other, Low power consumption

Send Inquiry

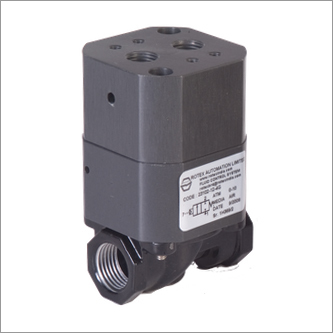

2-2 Air Operated Valve Minimum Order Quantity : 10 Type : 22 Air Operated Valve Application : Air control Product Type : 22 Air Operated Valve Color : Black Pressure : Other, 3 bar to 10 bar PSI Media : Air, Other Sealing : Rubber seal Material : Aluminum Alloy Connection Type : Threaded Temperature : 10°C to 50°C Disc : Metal Features : Compact Design Durable Valve Size : Small size Structure : Twoway valve, Other Port Size : 1/4 inch Valve Type : Directacting valve Pin : Standard connection pin Control System : Pneumatic Power : Not applicable (air operated), Other

Send Inquiry

2/2 Isolated Piston Valve Minimum Order Quantity : 10 Type : Isolated Piston Valve Application : Industrial Product Type : 2/2 Isolated Piston Valve Color : Red & Black Size : 1225mm

Send Inquiry

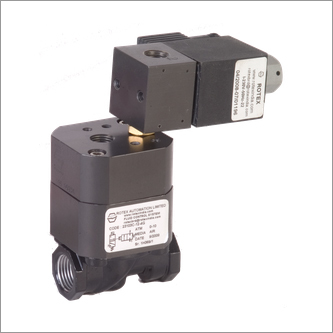

2/2 Isolated Piston Solenoid Valve Minimum Order Quantity : 10 Type : Solenoid Valve Application : Industrial Product Type : 2/2 Isolated Piston Solenoid Valve Color : Black Pressure : Medium Pressure PSI Size : 1225mm
