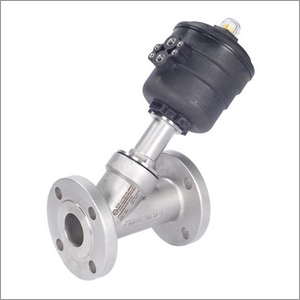

Double Acting Angle Seat Valve

Product Description

By becoming operational in the year 1967, we have developed ourselves as a full fledged quality based manufacturer and supplier of top grade Angle Seat Valve. Our offered valves can be easily converted from double acting to single acting mode. The provided valves are ideal for places where these is no requirements for exhaust air and sedimentation of particles in the operator crevices. Angle Seat Valve is available for the clients in different specifications as per the wide requirements.

Features:

• Aluminium hard anodized piston

• Operator end for longer life

• Well supported piston shaft

Angle Seat Valve

SALIENT FEATURES:

• Can be easily converted from NC to NO / Double Acting to Single Acting

• Operator having threaded ports is ideally suited for area in which contamination due to exhaust air and sedimentation of particles in the operator crevices are not desired

• Aluminium hard anodised piston

• Corrosion resistive glass filled nylon operator

• Brass inserts for operator port connections

• More number of gland packings at Valve end and

• Operator end for longer life

• Operator with threaded / NAMUR ports

• Lubricated pilot air not necessary

• Wetted parts : CF3M (SS 316L cast), SS 316L

• Life > 10 million cycles

• Fast acting up to 2000 cycles / hour

• Piston shaft well supported by rigid non metallic linear

• bearings avoiding metal to metal contact

• Specially designed body with lower bends for higher flow

• Burnished piston shaft

• Ideally suited for vacuum service

• Modular design

SPECIFICATIONS:

Action : Normally Closed / Normally Open/ Bi-Directional

Operating pressure : 0 - 16bar / 0 - 25 bar

Size : 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Body, sleeve material : CF3M (SS 316Lcast) (1.4435)

Seat seal : PTFE

Shaft/ Seat material : SS 316L (1.4404)

Port Connection : Threaded / Welded / Triclamp / ANSI/ Flange

Media : Steam, Air, Oil, Water, Liquid, Fuel Gas & Liquid, Vacuum

Fluid Temperature : -10 C to +180 C

Operator Material : Nylon glass filled

Seal/O ring : Viton/ EPDM

Pilot pressure : 0.8 -10 bar (refer pages 6 to 9)

Ambient temperature : -10 C to +60 C

Pilot Fluid : Air, Inert gas filtered to 50 micron.

Media :

Steam, Air, Oil, Water, Liquid.

Applications :

Air Drying Equipment, Autoclave, Bottling & Dispensing Equipment, Chemical & Petrochemical Industries, Coolant Control for Machine Tool, Fuel, Ink & Paint Dispensing, Industrial Compressor, Laundry Equipment,Nuclear Energy, Pollution Control Equipment, Process Control Application, Power Generation, Paper & Pulp Industries, PSA Plants, Pharmaceutical, Steam, Sterilizer, Textile Dyeing & Drying.
